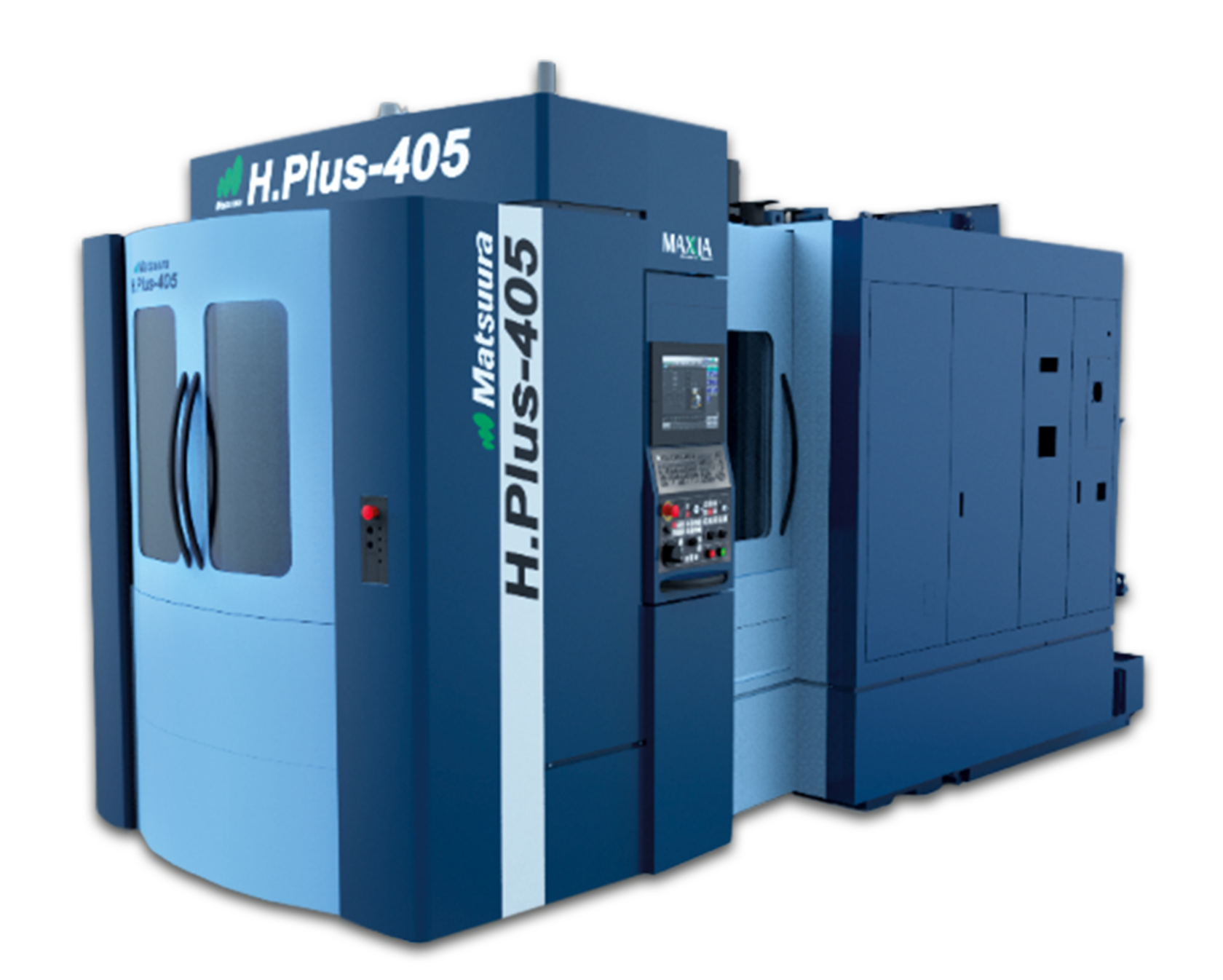

MATSUURA H.Plus-405

Horizontal Machining Center

The horizontal machining center H.Plus-405 has a tool magazine for up to 520 tools. With a 60x tool changer and a 2x pallet changer, it is optimally designed for the production of medium-sized batches, but can also be adapted to the production processes of companies that produce small batches just-in-time, with as little staff as possible and more than 7000 production hours per year.

Contact back to Overview

Segments

Mechanical engineeringMechanical engineering
Tool & mould makingTool & mould making
Medical TechnologyMedical Technology

Characteristics

  • precise
  • large processing space with a small footprint
  • highly productive
  • large tool storage
  • well suited for a wide variety of tasks
[Translate to Englisch:]

NC System

 FANUC31 iB

Movement & Ranges

X-Axis660 mm
Y-Axis660 mm
Z-Axis660 mm

Rapid Traverse

X-Axis60/60 m/min
Y-Axis60/60 m/min
Z-Axis60/60 m/min

Table (Pallet)

Number of Pallets2 / 6 / 12 / 24 / 36
Working Surface500 x 500 mm
Loading Capacity per Pallet400 kg
Max. Work SizeØ 700 x 850 mm

Spindle

Spindle Speed40 ~ 12.000 min-1
Spindle Motor Power15 / 22 kW
Max. Spindle Torque187,3 Nm / 1.120 min-1

Tools

Tool HolderSK40 / BT40 / HSK63
Number of Tools60 - 530

Downloads

H.Plus-405.pdf 1 MB
H.Plus-405 | Horizontal-Bearbeitungszentrum

Individual solutions

Are you looking for an individual option that fits your ideas and requirements perfectly? Then get in touch with us. Together we will find a solution.



Contact
