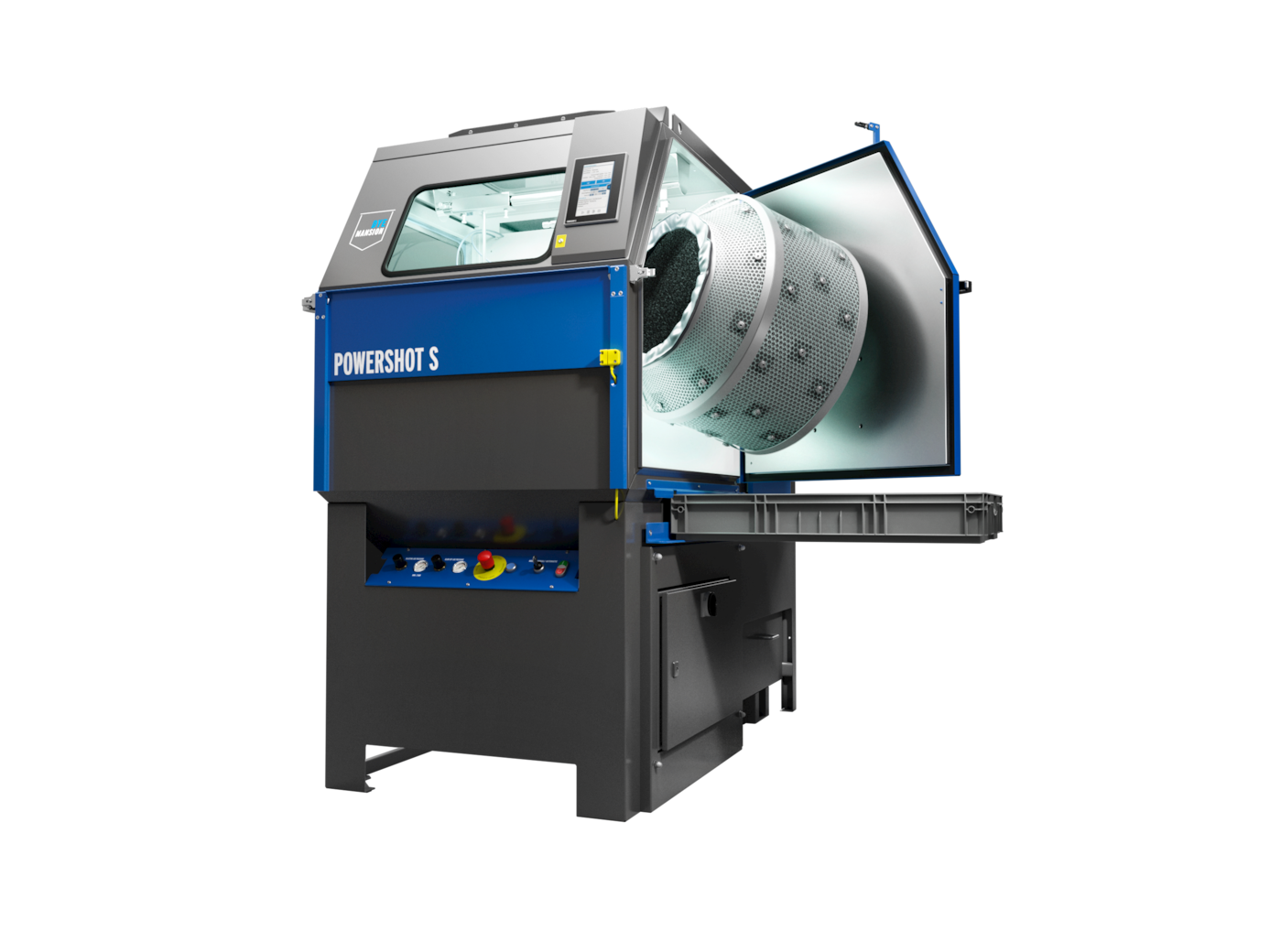

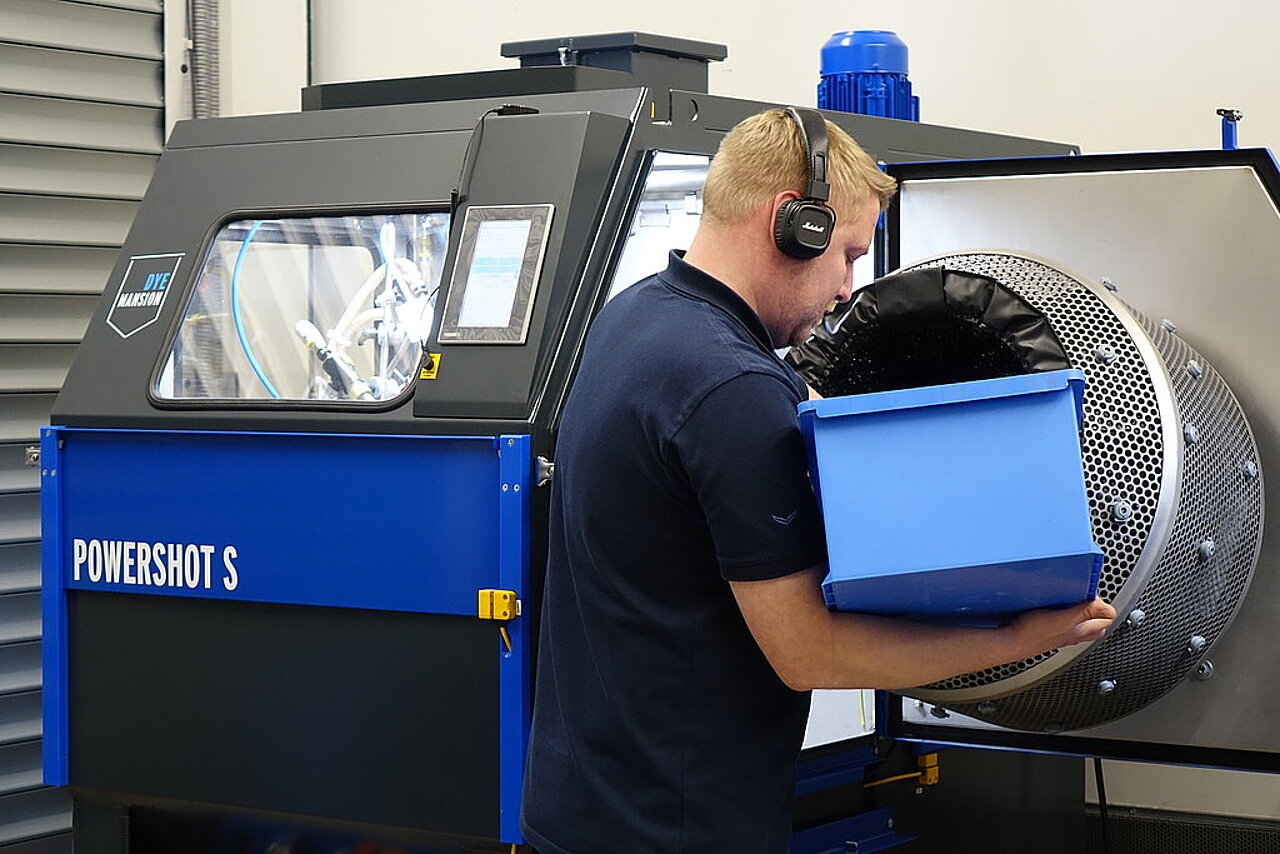

DyeMansion Powershot S

Additive Manufacturing

The DyeMansion Powershot S is the leading blast machine for market-ready products with a high-quality finish. With the PolyShot surfacing process, components are given a unique, matt, glossy look and a pleasant feel. The system can be used for almost any 3D printed end product and prepares it for further processing steps such as DeepDye Coloring.

Contact back to Overview

Segments

Pneumatics/HydraulicsPneumatics/Hydraulics
Additive ManufacturingAdditive Manufacturing
AerospaceAerospace
Tool & mould makingTool & mould making
Precision Mechanics/OpticsPrecision Mechanics/Optics
Medical TechnologyMedical Technology

Characteristics

  • Industry standard for efficient surface treatment
  • Throughput time of approx. 10 minutes
  • Homogeneous part quality thanks to the PolyShot surfacing process
  • Increase of productivity
  • Perfectly suited for hard plastics such as PA12 and PA11
[Translate to Englisch:]

Technical specifications

Performance - Capacity per runMedium build volume (e.g. 3/4 EOS P396 or full HP Jet Fusion 5200 build volume)
Dimensions System (L x W x H)1.700 x 1.310 x 2030 mm
Weight System480 kg
Power Supply1 kW
Compressed Air ConsumptionMinimum: 1,8 m3 / min at 5 bar
 Maximum: 12,5 m3 / min at 5 bar
Explained: The Powershot S I the leading blasting system for end-use parts with a superior finish

Individual solutions

Are you looking for an individual option that fits your ideas and requirements perfectly? Then get in touch with us. Together we will find a solution.



Contact
